Terminal

The terminal is the human's own window into the same machine room the agents work in: an xterm.js widget in the browser, backed by real PTY processes spawned on the server and streamed over WebSocket. Sessions are scoped per user, project, and (optionally) agent, reaped once idle and unattached, and audited.

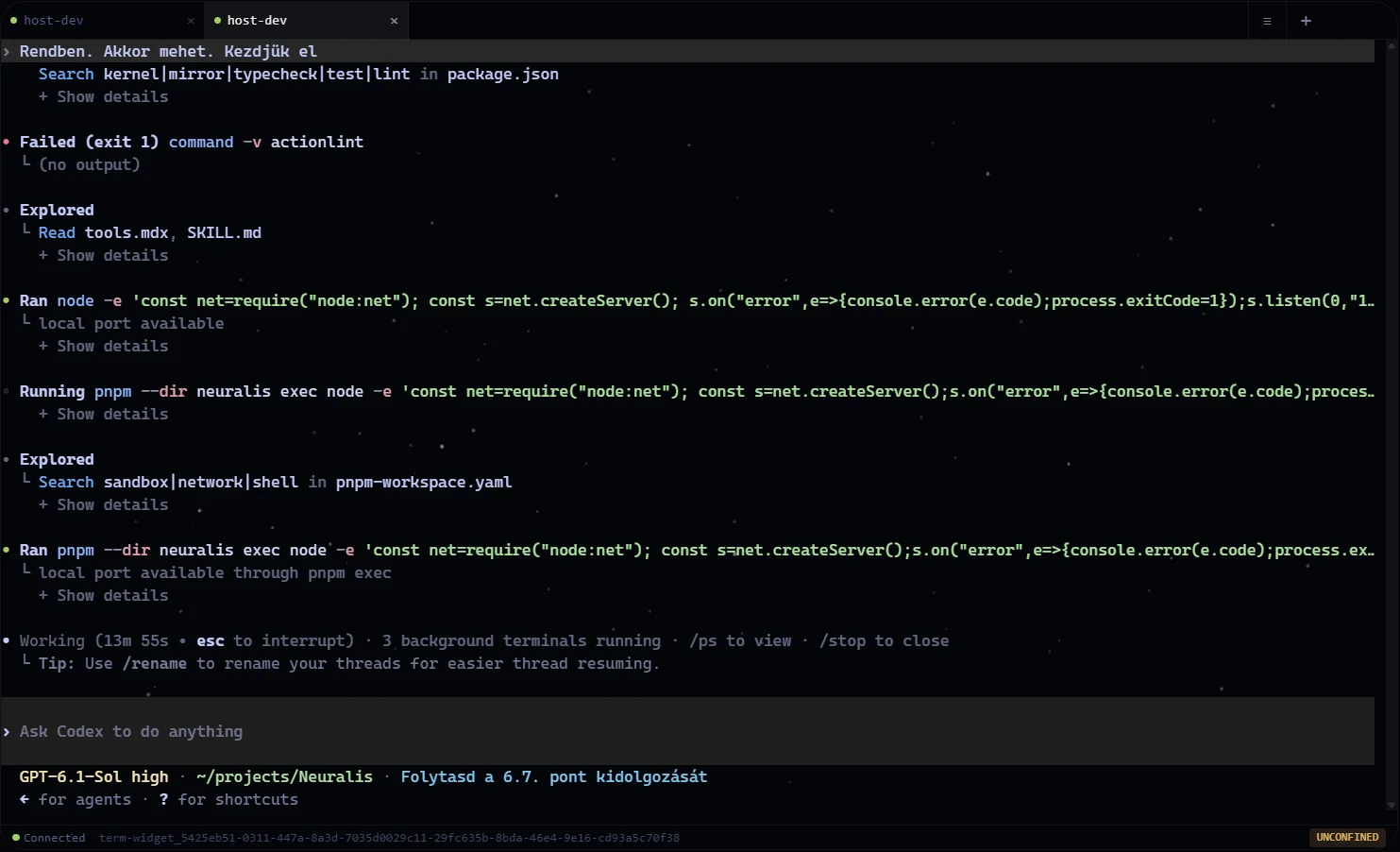

A configured host terminal running Codex. The sample output includes a failed actionlint invocation; terminal commands report their own results.

The terminal is part of agent-core. It shares the package with the agent runtime because the host-access plane needs the same PTY code, the same input guard, and the same URI-policy source index whether a session runs inside the container or on the host — one implementation, not two that drift.

No LLM-callable toolsCopy Anchor Link

The terminal contributes no model-visible tools, prompts, or resources, and PTY output never enters an agent's context. When a model needs to run shell commands it uses agent-core's execute tool, which carries its own command analysis, URI-policy gate, OS sandbox, and environment sanitization. Keeping the surfaces separate means agent shell access is governed by one consistent, policy-gated path rather than by whatever terminal happens to be open — and a human watching a terminal stays a different trust situation from a model running commands.

Feature gatesCopy Anchor Link

Viewers and newly created custom roles start with none of these, so a terminal is invisible to them until an admin grants terminal.read. How roles map to feature grants is covered in roles and features.

RoutesCopy Anchor Link

Every route lives under /api/packages/agent-core/, requires terminal.read, and derives userId, projectId, and the optional agentId from the verified session — none of it is taken from client values on trust. The agent axis is resolved against the agent store on every request, not merely read: a caller may only act for an agent their role's agent access covers, and an agent id they cannot use answers exactly like a session that does not exist. The same resolution runs on both terminal WebSockets before either side of the supervise comparison is computed.

The WebSocket is separate: /ws/terminal/:sessionId on the companion HTTP server (port 3101 by default), not on the Next.js host. It streams PTY output to the browser and keystrokes back. Upgrades are authenticated server-side — the session cookie resolves the platform user, membership in the requested project is verified, and role-derived feature grants decide whether the connection can type. There is no unauthenticated fallback; a connection that reaches authentication and fails it closes with code 4401.

Malformed input never gets that far and never receives a close code. The whole upgrade listener is guarded, and a request whose Host header or percent-encoded session id cannot be parsed has its socket destroyed with no handshake — so a rejection cannot reveal whether a session id exists, and an unparseable request does not leave a connection behind. Rejections are logged without any attacker-supplied bytes and are sampled rather than written one line per request.

The mount itself is contributed by agent-core (the package returns a fully closed auth handle) and attached by the host's generic companion loop, which injects capabilities only. Companion mounts deliberately do not share an auth policy, so none of them can be collapsed into a shared wrapper.

Source tabsCopy Anchor Link

Beyond plain sessions in the project data directory, the terminal opens tabs rooted inside the project's connected filesystem sources. GET /terminal/sources builds the dropdown; for each source visible to the caller it checks two things:

1. Effective exec permission, evaluated by the source-level URI-policy evaluator against the caller's user, role, and agent — a PTY without exec is meaningless.
2. The connector belongs to a terminal execution plane and resolves a usable working directory. A vector-only source (brain) has no OS path at all; a webtop belongs to its separately managed machine container — neither is a terminal destination in this widget.

A local or host source that passes both is returned selectable with its resolved working directory. Disabled or exec-denied local/host sources are still listed with a short reason. Brain and webtop sources are omitted: one has no filesystem and the other belongs to its own machine container, not the Neuralis app container. The flag is only a UI affordance: POST /terminal/sessions re-checks exec server-side regardless.

A fresh widget opens Terminal Manager and spawns nothing. The user chooses a source explicitly or attaches to a managed session.

When you pick an entry, the widget inserts the tab in a pending state and calls POST /terminal/sessions with a sourceSlug. The route re-resolves the source through the same exec gate (403 on denial, 404 for a source the caller cannot see), translates the source root into a working directory, and only then does the widget open its WebSocket — so a session can never silently start in the wrong directory.

Working directories are OS pathsCopy Anchor Link

The os://, data://, or brain:// scheme strings attached to sources identify source configurations; they are not paths a terminal can cd into. POST /terminal/sessions therefore rejects any URI-shaped cwd with 400 — pass sourceSlug and let the connector resolve the real path. Inside Docker the PTY spawns on the container-side path, while the dropdown also shows the host-side equivalent derived from the runtime stack mount table.

Root and host destinationsCopy Anchor Link

• Container Root (terminal.container) — labelled Container Root (/) under Docker and Process Root (/) on bare metal. It opens a session at /, bypassing source scoping entirely. Under Docker "all of the filesystem" means the container's filesystem; host directories are reachable only if the deployment mounts them in.
• Each host source (terminal.native) is its own destination on the operator's actual host, proxied through the host broker. Its working directory and sandbox roots are derived from the session owner's exact host-source URI policy by exactly the computation execute uses, and the broker clamps them against the operator-owned ceiling a second time; a host tab shows an UNCONFINED badge when the operator ceiling runs host spawns bare. Reattaching also checks the current source scope, enabled state, root, exec, and RW level; if authority narrowed, the old PTY remains visible to a supervisor for termination but cannot be reopened. If no usable host source exists, or the broker is not provisioned, the tab is listed non-selectable with the reason — there is deliberately no fallback to /. A source whose root the operator ceiling refuses answers the create with a 409 ceiling_denied that says the request was recorded for the operator's grant — the same wording an execute command gets. See security for the full host-plane model.

Both destination classes enforce their feature and exact source plane server-side on POST /terminal/sessions, not just in the listing. There is no synthetic aggregate Host Machine tab.

Read-only mountsCopy Anchor Link

Read-only sources surface an RO badge and a readOnly field. A local source PTY resolves its Landlock confinement through the same policy engine as the agent shell, restricted to that one source: a source whose policy treats every path alike is one root, writable only when the caller's effective policy grants write; a source whose rules differ by path is confined path by path below its root, and the tab is read-only only when nothing there is writable. A read-only bind mount independently forces the flag. The badge, the input handling and the OS rule all derive from the same evaluation — a tab never shows writable while the kernel would refuse the write. A source the shell engine cannot cover (for example one that is not currently running) is marked non-selectable and refuses to open, instead of opening a shell that could not read its own directory.

When a local source's root sits inside one of the deployment's OS mounts, brain-core seeds sensible per-role permissions at first attach — owners and admins get read/write/exec, members get read only — and explicitly configured per-role entries always take precedence. That seeding is what decides which members see a tab at all, since the terminal requires effective exec.

Session lifecycleCopy Anchor Link

Sessions are keyed by user, project, agent, and session id, so every agent gets its own terminal namespace and users never see each other's sessions. Creating a session under an id that already exists with a different working directory fails with 409 instead of silently reusing the old one — a session can never be rebound to a directory the caller was not checked against. Concurrent creates for the same key are also deduplicated before spawn, so one public session id cannot leave an untracked PTY or scratch directory behind.

A background reaper destroys sessions that have been idle past the configured timeout and have no view attached. A session someone is still looking at is never reaped, on either plane. Shortly before closing, the reaper sends a countdown notice on the WebSocket's control channel — deliberately not into the terminal's input, which would make the shell try to run it and would reset the very idle clock the notice is about.

Closing a tab detaches the view and leaves the process managed; explicit Terminate destroys it. Multiple Terminal widgets have isolated stores and may attach to the same session. The first writable view controls input and resize, additional views are observers, and Take Control transfers the lease. Minimizing a widget keeps both its terminal buffer and its connection alive, so the scrollback you had is still there when you restore it — the same is true of switching to Terminal Manager and back. Supervisor tabs keep the full user+agent+session identity, so same-named legacy sessions remain distinct; reconnect generation guards prevent stale timers from opening duplicate sockets for one tab.

What survives, and what does notCopy Anchor Link

Sessions are managed, not durable, and the two planes differ:

• A container session lives inside the Neuralis application process. Restarting or redeploying the application destroys every container session and its scrollback. Nothing is persisted to disk.
• A host session lives in the operator's separately installed broker process. Rebuilding the application does not restart the broker, so host PTYs survive an app deployment — but restarting the broker itself, or rebooting the host, destroys them.

Within a session's life, output is replayed correctly. The server keeps a terminal emulator mirroring each PTY, so a reconnect receives either a complete snapshot of the screen and scrollback — colours, cursor position and a running full-screen application included — or, when the view is only briefly disconnected, just the output it missed. It is never handed a truncated slice of the byte stream, which would leave the emulator stuck mid-escape.

The same truth has a second face when a tab is resized. Widening a tab updates the pseudo-terminal immediately and signals the running program, which is why a program that repaints — anything on the alternate screen — fills the new width at once. A program that writes to the normal buffer instead, so its history stays scrollable, has already committed each line at the width in force when it was printed. Those line breaks are part of the text now, so output printed before the resize keeps its old width while everything printed after it uses the new one. Nothing in the terminal can re-flow it, and a narrow-looking transcript inside a wide tab is that, not a sizing fault. Restarting the program or clearing its view makes the history match again.

Private temp and image pasteCopy Anchor Link

Every PTY receives one unguessable 0700 scratch directory for its whole lifetime. TMPDIR, TMP, TEMP, and CLAUDE_CODE_TMPDIR point there, and a source-scoped session gets only that exact path as an additional Landlock read/write root. Shared /tmp therefore stays non-writable while CLIs such as Claude Code can still create their per-user temporary directory. Scratch is removed when the PTY exits, is terminated, or is idle-reaped; a bounded orphan sweep handles unclean process or host exits.

Ctrl/Cmd+V is captured before xterm can forward the control byte to the remote CLI. During that user gesture, the browser Clipboard API returns either ordinary text—which is sent as a bracketed terminal paste—or image pixels. Native context-menu image paste and local image drag/drop use the same image path. A handled drop is prevented from navigating the browser away from the workspace.

Before upload the browser decodes and re-encodes the pixels, stripping metadata and bounding dimensions and bytes. The authenticated route verifies the exact session tuple, format magic, per-file size, and the serialized per-session budget (32 staged files / 64 MiB), then writes a server-named 0600 file. Its private server path is bracket-pasted into the controlling PTY. Multiple dropped images are staged in order. Codex and Claude Code recognize each pasted image path and render their own [Image #N] attachment.

This bridge is necessary even when the server runs Windows: a local CLI can reach the same desktop clipboard, but a browser user and a remote VPS do not share one operating-system clipboard. In terminal conventions Ctrl+C remains SIGINT. Browser/context-menu text paste remains available, while keyboard paste uses the explicit browser bridge above. Clipboard reads require a secure browser context and may be refused by browser policy; that denial is surfaced in the terminal UI instead of falling through to an unreachable remote X11 clipboard.

The limits are admin-editable platform configuration rather than constants, and apply at the next create, exec, or reaper sweep:

Shell selectionCopy Anchor Link

Both shell surfaces — the interactive PTY and the agent execute runner — resolve the shell binary through one shared ladder, per spawn:

1. NEURALIS_SHELL — an operator override, honored only when the named binary exists.
2. On Windows, COMSPEC (falling back to cmd.exe); the POSIX rungs below never run there.
3. The interactive terminal prefers the operator's own $SHELL when it exists, so a native deploy keeps its zsh or fish. The agent runner prefers bash determinism — model-issued commands lean on bash semantics — and consults $SHELL last.
4. /bin/bash, /usr/bin/bash, then a PATH probe for bash; the same sequence for sh; finally a bare sh left to the OS to resolve at spawn.

The ladder checks the filesystem directly and spawns no helper processes to locate a shell. A confined (Landlock) terminal is Linux-only: on other platforms confined spawns fail closed — a structured error, never an unsandboxed shell.

Input screening, environment, and auditCopy Anchor Link

A terminal hands a real shell to a browser tab, so the surface is treated as privileged throughout.

• Environment sanitization. The PTY spawns with known-sensitive variables stripped, so platform secrets are not sitting in every shell's environment.
• Line-level blocklist. Keystrokes are line-buffered and each completed line is checked against a blocklist covering catastrophic commands (rm -rf /, mkfs, dd of=/dev/…, fork bombs, shutdown/reboot), platform-zone and credential-file paths, and secret-name probes. Blocked lines are not forwarded; the client gets a blocked message with a reason. This is best-effort defence against accidents — a pattern filter, not a sandbox.
• Rate limiting. A token-bucket limiter caps WebSocket input per connection.
• Audit. Session attach/detach and blocklist rejections are written to the platform audit log in the app zone (actions terminal.session and terminal.blocked), keyed by user, project, agent, and session. They land where an audited agent cannot reach them, rather than in a package-local file.
